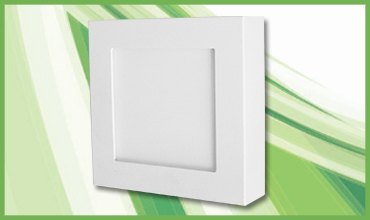

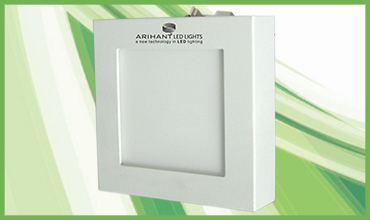

Arihant LED Surface Panel Lights - ASSPL 6-24
Applications:
Hotels, Hospitals, Office Lighting, Indoor Lighting, Commerical Lighting, Common Area Lighting
This Light is available from 6 to 24 WATT
Technical Specifications of Arihant LED Surface Panel Lights
| Input Voltage | AC85V ~ 265V |
| Frequency Range | 50 Hz ~ 60Hz |
| Total Harmonic Distortion | <9% |
| Power Factor | >0.9 |
| Power Efficiency | >87% |
| Electrical Gear | Integral HF electronic driver with APFC |
| LED | Everlight / Osram |
| LED Viewing Angle | 120ยบ |
| Led Luminous Efficiency | 80 ~ 110 LM/W |
| Lamp Efficiency | >80% |
| Co-Related Color Temperature (CCT) | Warm White (W/W) 2700K~3900K |
| Neutral White (N/W) 3900K~4500K | |
| Cool White (C/W) 5000K~6500K | |
| Color Rendering Index (CRI) | >70 |
| Life | >30,000 hrs |
| Housing | Pressure die cast Aluminum alloy for housing gear / extruded aluminum lamp housing (heat sink) for better heat transmission. |
| Protection | Surge Protection 2 - 10 KV, Low Voltage / Over Voltage Protection |
| Features | Eco Friendly, Low Power Consumption, No UV & IR Radiation, Long Life, Less Heat, No Bugs, Instant On & Off |
* Conditions apply
Note - All the technical parameters are the stats of the sample inspected, some product have deviation to the practical technical parameters.
